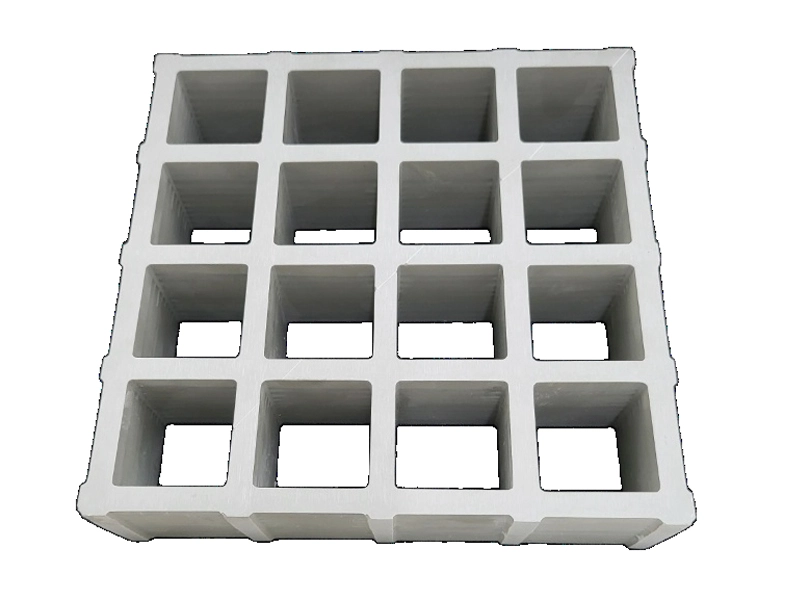

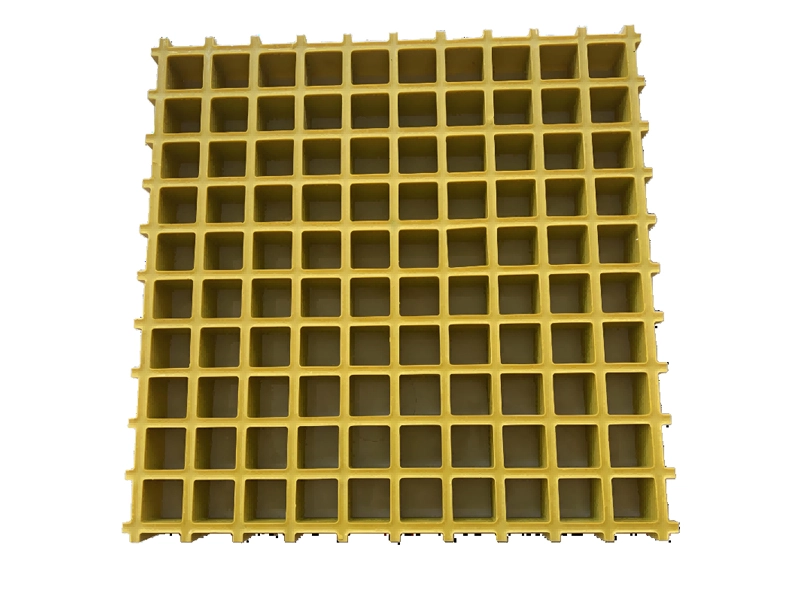

IndonesiaSino Grating offre varie specifiche di grigliato in FRP.
| Numero di serie | Altezza (mm) | Dimensione maglia (mm) | Dimensione pannello (mm) | Area aperta |
| 1 | 13 | 38×38 | 1220×3660 | 78% |
| 2 | 15 | 38×38 | 1220×3660 | 78% |
| 3 | 20 | 38×38 | 1220×3660 | 65% |
| 4 | 25 | 38×38 | 1220×3660 | 68% |
| 5 | 30 | 38×38 | 1220×3660 | 68% |
| 6 | 35 | 38×38 | 1220×3660 | 56% |
| 7 | 38 | 38×38 | 1220×3660 | 68% |
| 8 | 50 | 38×38 | 1220×3660 | 56% |
| 9 | 60 | 38×38 | 1220×3660 | 56% |
| 10 | 25 | 40×40 | 1007×4047 | 67% |
| 11 | 30 | 40×40 | 1247×4047 | 67% |
| 12 | 40 | 40×40 | 1247×4047 | 67% |
| 13 | 13 | 50×50 | 1220×4000 | 82% |
| 14 | 13 | 50.8×50.8 | 1220×4000 | 82% |
| 15 | 25 | 50×50 | 1220×3660 | 78% |
| 16 | 40 | 50×50 | 1220×3660 | 80% |
| 17 | 50 | 50×50 | 1220×3660 | 78% |
| 18 | 63 | 50×50 | 1220×3660 | 78% |
| 19 | 25 | 83×83 | 1007×4047 | 84% |
| 20 | 40 | 83×83 | 1007×4047 | 84% |
| 21 | 30 | 12.7×12.7/40×40 | 1220×3660 | 30% |
| 22 | 25 | 19×19/38×38 | 1220×3660 | 40% |
| 23 | 38 | 19×19/38×38 | 1220×3660 | 40% |
| 24 | 14 | 20×20/40×40 | 1247×4047 | 42% |
| 25 | 30 | 20×20/40×40 | 1007×4047 | 42% |
| 26 | 40 | 20×20/40×40 | 1007×4047 | 42% |
| 27 | 50 | 25×25/50×50 | 1524×4000 | 55% |
| 28 | 38 | 26×26/52×52 | 1220×3660 | 60% |
| 29 | 38 | 25×50 | 1220×3660 | 48% |
| 30 | 50 | 25×50 | 1220×3660 | 48% |
| 31 | 25 | 25×100 | 1007×3007 | 67% |
| 32 | 30 | 25×100 | 1007×3007 | 67% |
| 33 | 38 | 25×100 | 1220×3660 | 62% |
| 34 | 38 | 38×100 | 1220×3660 | 65% |
| 35 | 38 | 25×152 | 1220×3660 | 63% |
| 36 | 38 | 38×152 | 1220×3660 | 67% |
| 37 | 50 | 38×100 | 1220×3660 | 62% |
| Numero di serie | Tipo | Spessore (mm) | Dimensioni della barra portante (Superiore/Inferiore) mm |
Peso (kg/m²) |
Area Aperta |
| 1 | I-4010 | 25.4 | 15.24/15.24 | 18.6 | 40% |
| 2 | I-5010 | 25.4 | 15.24/15.24 | 14.3 | 50% |
| 3 | I-6010 | 25.4 | 15.24/15.24 | 12.8 | 60% |
| 4 | I-40125 | 31.75 | 15.24/15.24 | 20 | 40% |
| 5 | I-50125 | 31.75 | 15.24/15.24 | 17.4 | 50% |
| 6 | I-60125 | 31.75 | 15.24/15.24 | 13.8 | 60% |
| 7 | I-4015 | 38.1 | 15.24/15.24 | 23.6 | 40% |
| 8 | I-5015 | 38.1 | 15.24/15.24 | 19.82 | 50% |
| 9 | I-6015 | 38.1 | 15.24/15.24 | 17.8 | 60% |
| 10 | I-4020 | 50.8 | 15.24/15.24 | 30.82 | 40% |
| 11 | I-5020 | 50.8 | 15.24/15.24 | 26.62 | 50% |
| 12 | I-6020 | 50.8 | 15.24/15.24 | 22.02 | 60% |
| 13 | T-1210 | 25.4 | 38.1/15.24 | 17.54 | 12% |
| 14 | T-1810 | 25.4 | 41.3/15.24 | 15.8 | 18% |
| 15 | T-2510 | 25.4 | 38.1/15.24 | 12.5 | 25% |
| 16 | T-3310 | 25.4 | 41.3/15.24 | 13.5 | 33% |
| 17 | T-3810 | 25.4 | 38.1/15.24 | 10.5 | 38% |
| 18 | T-1215 | 38.1 | 38.1/15.24 | 19.8 | 12% |
| 19 | T-2515 | 38.1 | 38.1/15.24 | 16.7 | 25% |
| 20 | T-3815 | 38.1 | 38.1/15.24 | 14.2 | 38% |
| 21 | T-5015 | 38.1 | 25.4/15.24 | 10.5 | 50% |
| 22 | T-3320 | 50.8 | 25.4/15.24 | 21.8 | 33% |
| 23 | T-5020 | 50.8 | 25.4/15.24 | 17.3 | 50% |
| 24 | HL-4020 | 50.8 | 15.24/15.24 | 70.1 | 40% |
| 25 | HL-5020 | 50.8 | 15.24/15.24 | 52.01 | 50% |
| 26 | HL-6020 | 50.8 | 15.24/15.24 | 44 | 60% |
| 27 | HL-6520 | 50.8 | 15.24/15.24 | 33.5 | 65% |
| 28 | HL-5825 | 63.5 | 15.88/15.88 | 48 | 58% |
